Stock line
Parts we already make
Published sizes straight from the IPS catalog — extruded profiles, tubing and rod that run on standing tooling. Quote a stock part number and you skip die charges and development entirely.

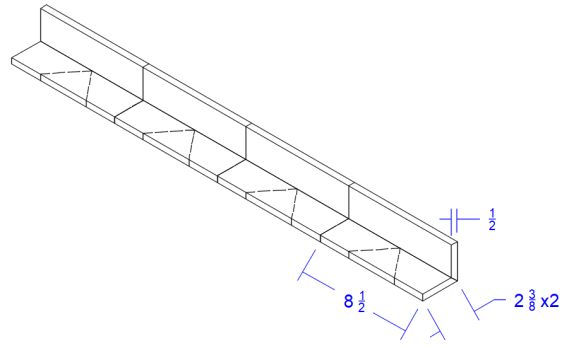

Corner protectors — L profile
Extruded polyethylene corner boards in 36-inch stock lengths. The everyday defense for furniture, glass, doors and palletized freight.
| Part number | Wall thickness | Leg height | Length | Color |
|---|---|---|---|---|
| IPS-L014 | 1/2" | 2 3/8" | 36" | Grey |
| IPS-L007 | 7/8" | 3" | 36" | Grey |

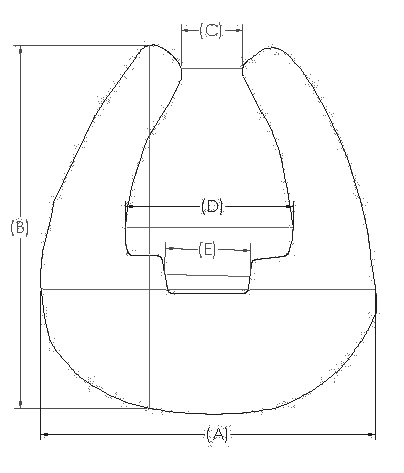

U-channel edge protector
Profiled channel that grips a panel edge and stays put — glass, countertops, doors, tabletops. Five-dimension extrusion, 54-inch lengths.
| Part number | A | B | C | D | E | Length |
|---|---|---|---|---|---|---|
| IPS-UC-54 | 2 3/8" | 2 7/8" | 3/4" | 1 5/16" | 3/4" | 54" |

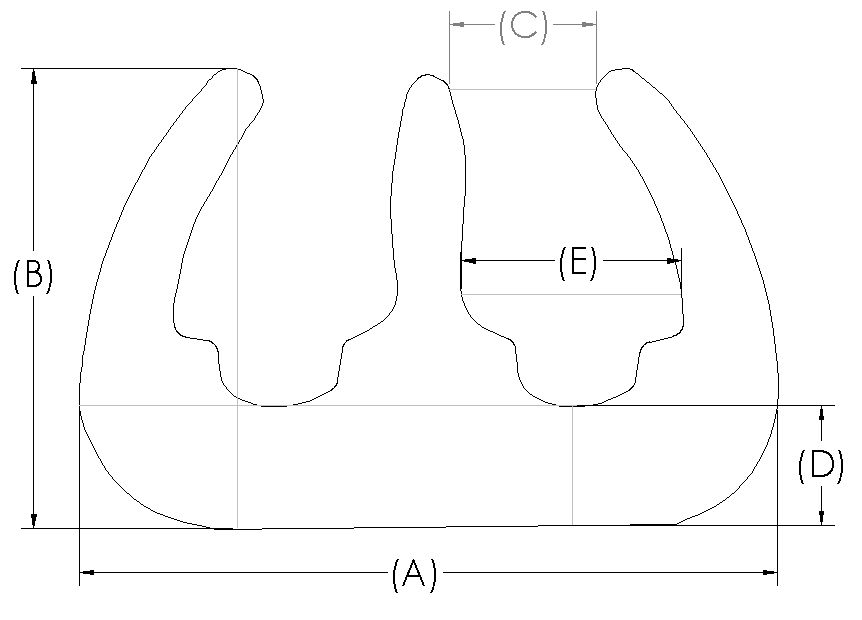

Double protection corner guard
Twin-channel W profile that wraps a corner from both directions — the heavy-duty option where a single channel isn't enough.
| Part number | A | B | C | D | E | Length |
|---|---|---|---|---|---|---|
| IPS-WC-54 | 4 1/16" | 2 11/16" | 7/8" | 11/16" | 1 1/4" | 54" |
Protective tubing
Slide-on tube protection for pipe, rail, handle and machined shafts. Short PLT lengths are made for capping ends.
| Part number | Outside dia. | Inside dia. | Length | Color |
|---|---|---|---|---|
| IPS-GT-01 | 1 3/4" | 1 1/4" | 48" | Grey |
| IPS-GT-02 | 2 1/4" | 1 1/4" | 48" | Grey |
| IPS-PLT2 | 2" | 1" | 3" | Grey |
| IPS-PLT1 | 2 1/2" | 1 1/2" | 4" | Grey |
| IPS-05 | 2 1/8" | 5/8" | 5" | Grey |

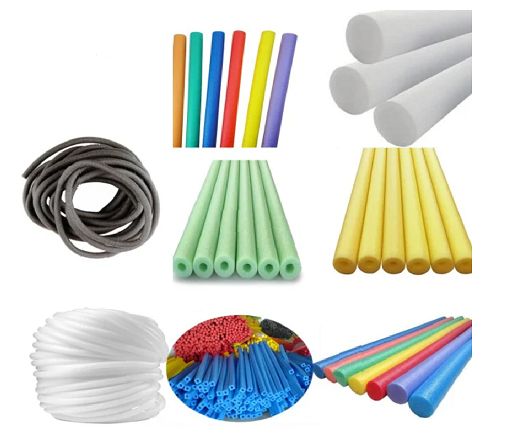

Colored tubing
The same protective tube in high-visibility colors — for safety padding, gym and playground equipment, and anywhere the guard needs to be seen.
| Part number | Outside dia. | Inside dia. | Length | Color |
|---|---|---|---|---|
| IPS-FF-47 | 2 1/4" | 1" | 47" | Yellow · Red · Blue |
| IPS-FF-56 | 2 1/4" | 1" | 56" | Yellow · Red · Blue |
| IPS-FFM-47 | 3" | 1" | 47" | Yellow · Red · Blue |
| IPS-FFM-56 | 3" | 1" | 56" | Yellow · Red · Blue |

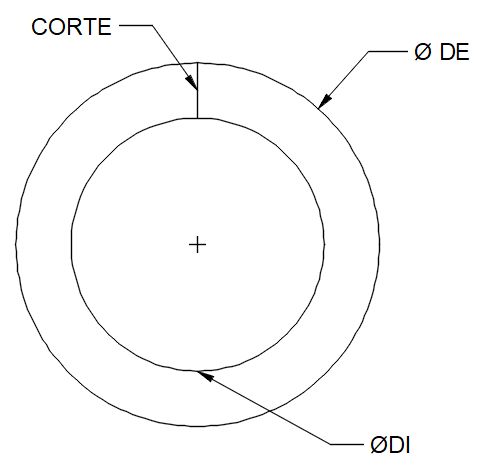

Tubing with cut / adhesive
Pre-slit tube that snaps over a part already installed, available with pressure-sensitive adhesive so it stays where you put it.
| Part number | Wall thickness | Height | Length | Color |
|---|---|---|---|---|
| IPS-C010-17 | 1 1/2" | 2" | 17" | Grey |
| IPS-C010-30 | 1 1/2" | 2" | 30" | Grey |
Solid rods & backer rod
Solid round profiles. Large diameters ship as cut lengths; 1/4-inch through 3/4-inch run as continuous coils for gap filling and joint backing.
| Part number | Diameter | Length | Color |
|---|---|---|---|
| IPS-Rod-57 | 2 1/4" | 57" | Grey |
| IPS-Rod-74 | 2 1/4" | 74" | Grey |
| IPS-Rod-72 | 2 1/2" | 72" | Grey |
| IPS-Rod-610 | 1/4" | 24,015" (≈2,001 ft) | Grey |
| IPS-Rod-320 | 3/8" | 12,598" (≈1,050 ft) | Grey |
| IPS-Rod-722 | 1/2" | 28,425" (≈2,369 ft) | Grey |
| IPS-Rod-472 | 5/8" | 18,582" (≈1,549 ft) | Grey |
| IPS-Rod-335 | 3/4" | 13,189" (≈1,099 ft) | Grey |
Note: Coil parts are supplied as one continuous length, not cut pieces.
Made to order
Standard sizes, cut to your spec
These families are produced to order, and the catalog publishes a standard size menu for each. Anything outside the menu is still quotable — the sizes below are simply the ones already proven on the floor.
Corner
L-profile corner, cut to your leg and height.
Standard sizes (A × B, tenths of an inch)
Heights: 2, 3, 4, 5"
Quote this line

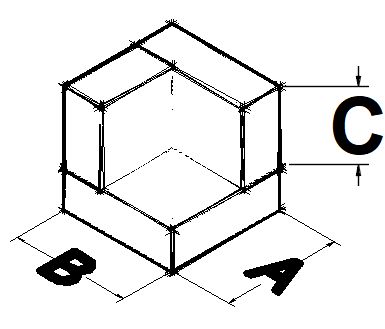

Square
Square section protector for posts, legs and square profiles.
Standard sizes (A × B, tenths of an inch)
Heights: 2, 3, 4, 5"
Quote this line

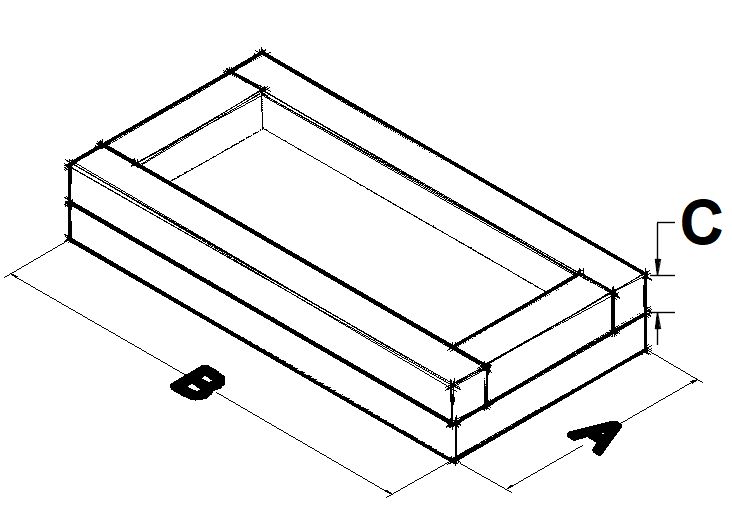

End cap
Five-sided cap that cups the end of a product.
Standard sizes (A × B, tenths of an inch)
Heights: 2, 3, 4, 5"
Quote this line

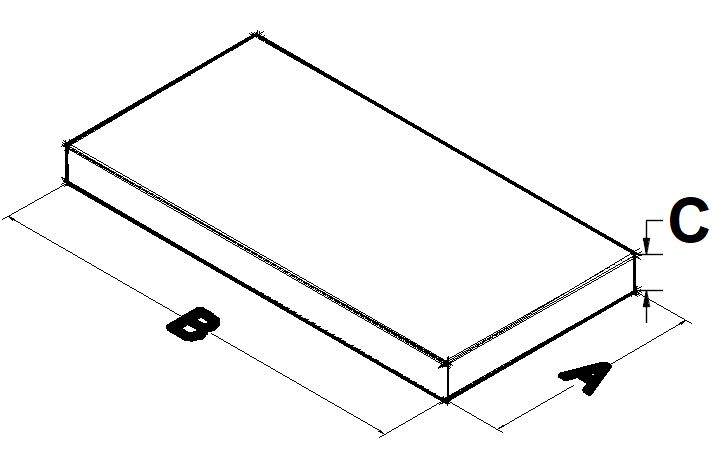

Pad
Flat cushioning pad for layers, void fill and surface protection.
Standard sizes (A × B, tenths of an inch)
Heights: 2, 3, 4, 5, 6"
Quote this lineReading a part number
Every made-to-order part encodes its own spec:
CR — series — corner (SQ1 square, EC end cap, PD pad)
50100 — A 5.0″ × B 10.0″, in tenths of an inch
30 — height 3.0″
PE — material code
Standard wall is 1″, so internal dimensions are the outside minus 2″ — an IPS-EC-6080 fits a 4.0″ × 6.0″ part.
Catalog materials
Available on every standard part
XLPE, EVA and EPE are stocked too, but the standard catalog tables run in these five. Ask if you need one of the others.
Need a size that isn't listed?
Nothing here is a limit — these are just the sizes already running. Configure any dimension in the quoting tool and an engineer confirms it within one business day.
(619) 826-9041
